Description

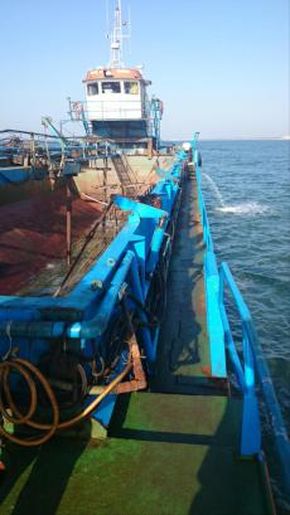

771BSB TRAILING SUCTION SPLIT HOPPER DREDGER FOR SALE
- FROM DIRECT OWNERS -

OTHER DETAILS
Converted in 1996
Last Dry Dock in 2017
Schottel needs repairs but Owners will deliver the Vessel in full
operational condition if sale price is paid.
Hydraulic power pack for pumps Cummins KTA 19, 522 KW
Hydraulic Power Pack for jet pumps Cummins C6 179 KW
It has mechanical sealing

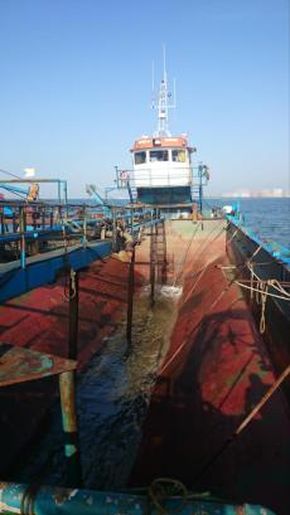

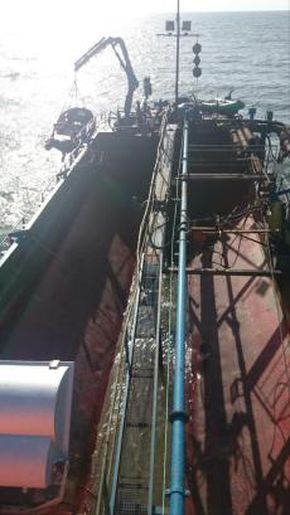

The split hopper is operated hydraulically
Max speeds_ 7 knots loaded
Fuel capacity 36 m3
Fresh water capacity 4 m3
Lub oil capacity 1 m3
Range at sea - Endurance around 30 days
Estimation fuel consumption about 1500-1800 L/day working
Unload distance by pipe max 1000 metres
Loading time 35-45 minutes
Unloading time (500m pipe) 45-60 minutes
Converted into trailing suction split hopper dredger in 1996.

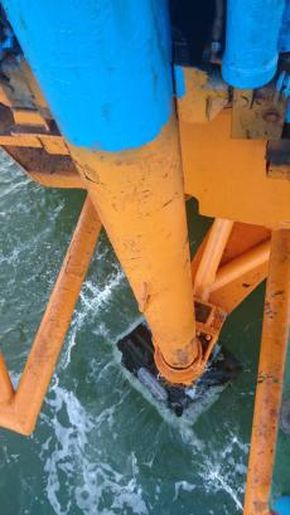

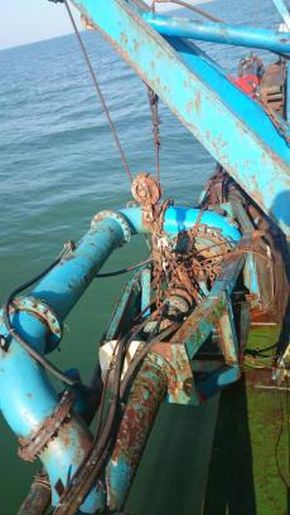

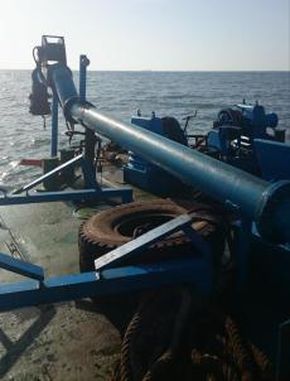

Submerged load pump Warman working with hydraulic engine and
discharge pump Bagema with hydraulic engine.
Spent more than 20 years trading in fresh water.
Over flow is hydraulic. Height can be regulated.

Specifications

Accommodation

Cabins 1 x 2 men and 1 x 4 men

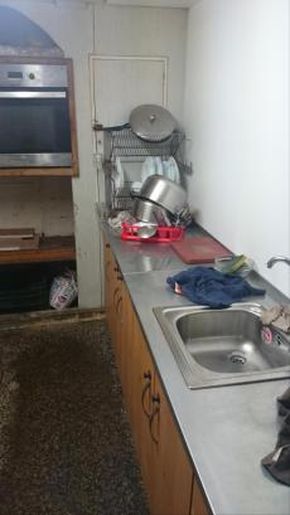

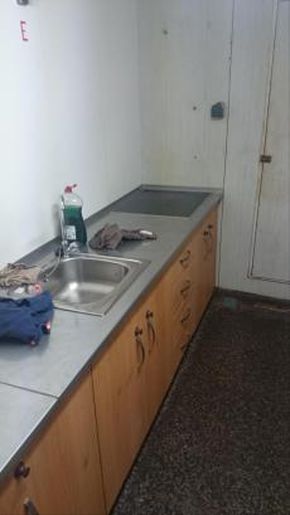

Dining room - Kitchen Yes

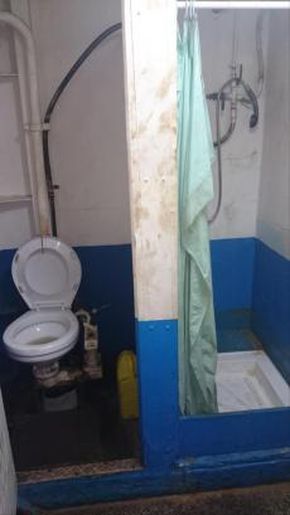

Toilet - Shower Yes

Construction

Built (year and place) 1972,SPAIN
Hull material Steel
Length Overall (m) 45.00 m
Breadth (m) 9.80 m
Depth (m) 3.66 m
Draft (m) 3.30 m
GT (tons) 290 tons

Equipment

Navigation Equipment

Sounder
AIS
NAVTEX

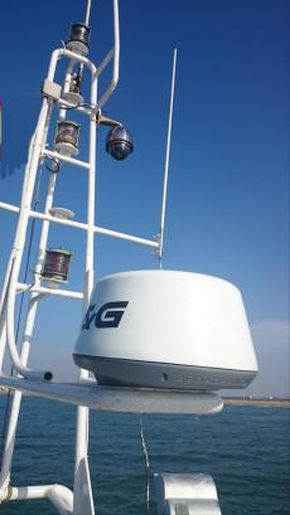

Radar
VHF(s)
SART
GPS(s)
Bridge fully equipped in compliance with Spanish Regulations.

Engine(s)

Total power output (BHP) 1200 bhp

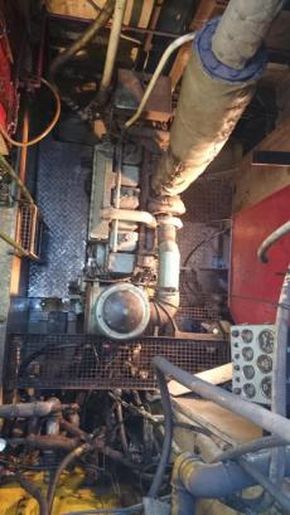

Main Engine(s) (make,type) 1 x Cummins KTA38 (2007)
Main Propulsion System SINGLE SCREW SCHOTTEL
Auxiliary engine(s) 2 X 30 KW , Stanford
Propellers 1
Speed maximum 9 knots

Certification

Flag SPAIN
Class Society and Notation LAID UP
